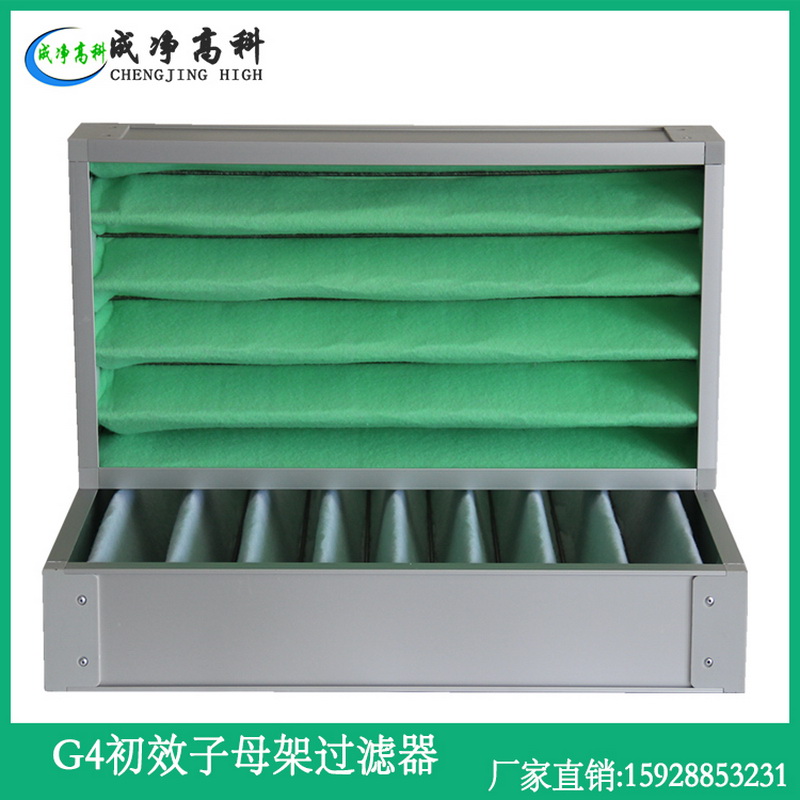

折叠式初效空气过滤器
Fold-down coarse efficiency air filter
特点Features
●纸框或铝合金金属外框
●阻力小、风量大
●适用于空调系统的初级过滤
●- box or aluminum metal frame
●Responding to small resistance, air
●Applicable to air conditioning system adopts the primary filtration
型号尺寸及-参数
Standard specification
型号 model | 外形尺寸 Outside Dimensions (mm) | 额定风量 Rated air flow (m3/h) | 初阻力 Initial resistance (Pa) | 效率(级别) Efficiency(class) | 滤料型号 Model of filter media | |
CJ-S4-1 | 295×295×46mm 12″×12″×13/4″ | 800m3/h | 25Pa | 50% (计重法) weight | G3 G4 | 绿色、蓝色、白色初效过滤棉 Green, blue, white, early filter cotton effect |
CJ-S4-2 | 495×295×46mm 20″×12″×13/4″ | 1300m3/h | ||||
CJ-S4-3 | 495×495×46mm 20″×20″×13/4″ | 2200m3/h | ||||
CJ-S4-4 | 595×295×46mm 24″×12″×13/4″ | 1600m3/h | ||||
CJ-S4-5 | 595×495×46mm 24″×20″×13/4″ | 2700m3/h | ||||
CJ-S6-6 | 595×595×46mm 24″×24″×13/4″ | 3200m3/h | ||||
*可要据用户要求定制不同规格型号的过滤器
According to user reuirements to customize different specifications and types of filters
